SEC is commercialized through technical collaboration with Stulz GmbH, Germany.
Alternating current flows through electrodes in the water, and steam is generated by using water itself as a heating element based on the principle of Joule heat.
In contrast to pan-type or electric steam humidifiers that use heaters, the electrodes do not generate heat.
Operation is controlled by a microprocessor, which produces clean steam without water treatment.

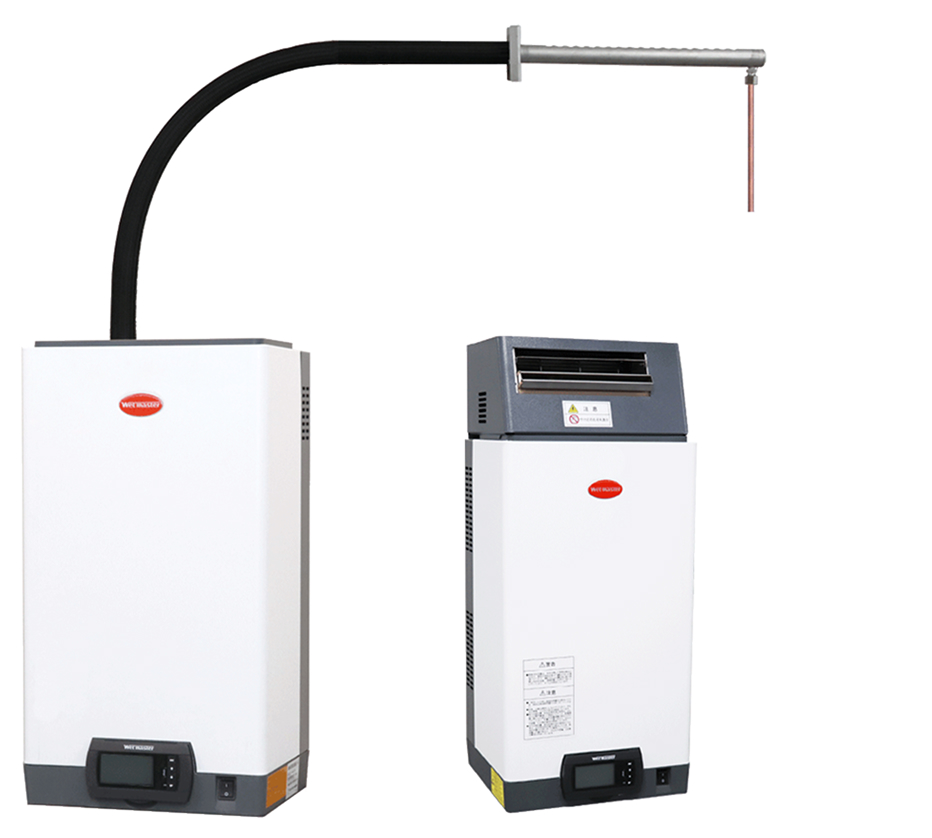

Two types are available:
1)Built-in air conditioning equipment with steam spray pipes
2)Direct room spray type with steam blowers
Suitable for a wide range of applications from general air conditioning to industrial air conditioning.
Features
- Clean steam humidification without water treatment.
- Operation signal output function is installed, easy to check the operating conditions.
- Applicable conductivity range is expanded (7.5～35.0 mS/m).
- Operable with lower conductivity than general tap water in Japan.
- All models are equipped with a drainage pump as standard, which helps to shorten drainage time and prevents reduction of steam volume.
- One unit supports both proportional control and ON / OFF control.
- Power adjusted between 20% and 100 % of maximum steam generation.
Specifications
| Type |
Immersed Electrode steam humidifier; WM-SEC Type
|
Built-in type
| Model (WM-) |
SEC03 |
SEC05 |
SEC08 |
SEC10 |
SEC15 |
SEC25 |
SEC35 |
SEC45 |
SEC65 |
| Maximum Steam Generation (kg/h) |
3 |
5 |
8 |
10 |
15 |
25 |
35 |
45 |
65 |
| Rated Voltage |
3-phase AC200V 50/60Hz |
| Rated Power Consumption (kW) |
2.3 |
3.8 |
6 |
7.5 |
11.3 |
18.8 |
26.3 |
33.8 |
48.8 |
Direct Room Spray Type
| Model (WM-) |
SEC03FA/FB |
SEC05FA/FB |
SEC08FA/FB |
SEC10FA/FB |
SEC15FA/FB |
| Maximum Steam Generation (kg/h) |
3 |
5 |
8 |
10 |
15 |
| Rated Voltage |
3-phase AC200V 50/60Hz |
| Rated Power Consumption (kW) |
2.3 |
3.8 |
6 |
7.5 |
11.3 |
