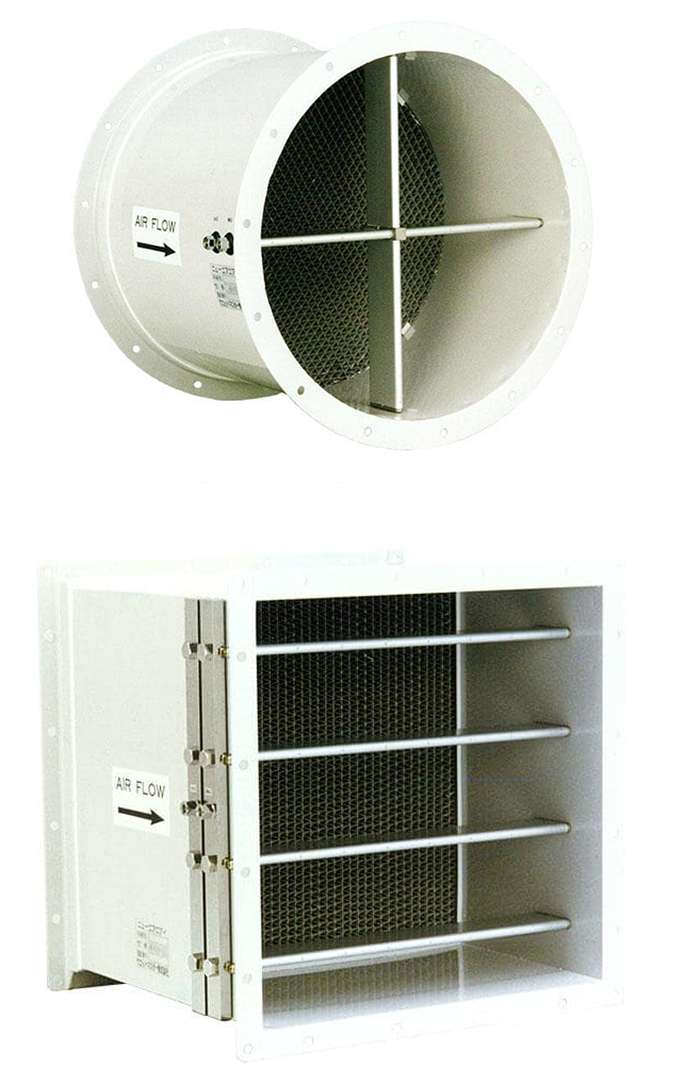

NAE is a high-precision air flow indicator that consists of blade-shaped pitot tube sensors and a flow straightener element into duct-shaped metal cases, and directly connected to ducts.
Available in two types: square type and round type, made of aluminum. Stainless steel specifications with excellent corrosion resistance and heat resistance are also available.
The airfoil sensers in the detection part conforms to JIS B 8330 (Pitot tube traverse method), have a flat hollow body and multiple measurement holes.
Unique shaped sensors make a high differential pressure between total pressure and static pressure, which improve measurement accuracy.
Flow straightener elements on the upstream side reduce the required straight pipe length and allow the measurement in narrow spaces.
Detected pressure is displayed as air volume and wind velocity by connected to a digital indicator.
Connecting to converters enable remote numerical control and automatic system control.
The length of straight tubes required for measurement is greatly reduced as the pitot tube sensors and the flow straightener elements are integrated.
Features
- Length of straight tubes required for measurement is greatly reduced as the pitot tube sensors and the flow straightener elements are integrated.
- Suitable for various mounting conditions.
- High accuracy of ±3%R.D. even under adverse conditions.
- Stainless steel specifications and custom-made dimensions are available.
Specifications
| Product name/Type |
High-precision air flow indicator; New Aero Eye(NAE) |
| Dimension : Square |
W (width) and H (height) from 100 to 1200mm. 50mm increments up to 1000mm, and 100 mm increments above 1000mm. |
| Dimension : Round |
Diameter from 100mm to 1200mm. 50mm increments up to 1000mm, and 100mm
increments above 1000mm. |
| Measurement Target |
Air |
| Air Velocity |
4.0 to 25.0m/s |
| Air Volume |
Corresponds to the above air velocity range. |
